Theme Color, Logo & Login Screen

This section tells you how to do some branding customization within the one2edit™ GUI.

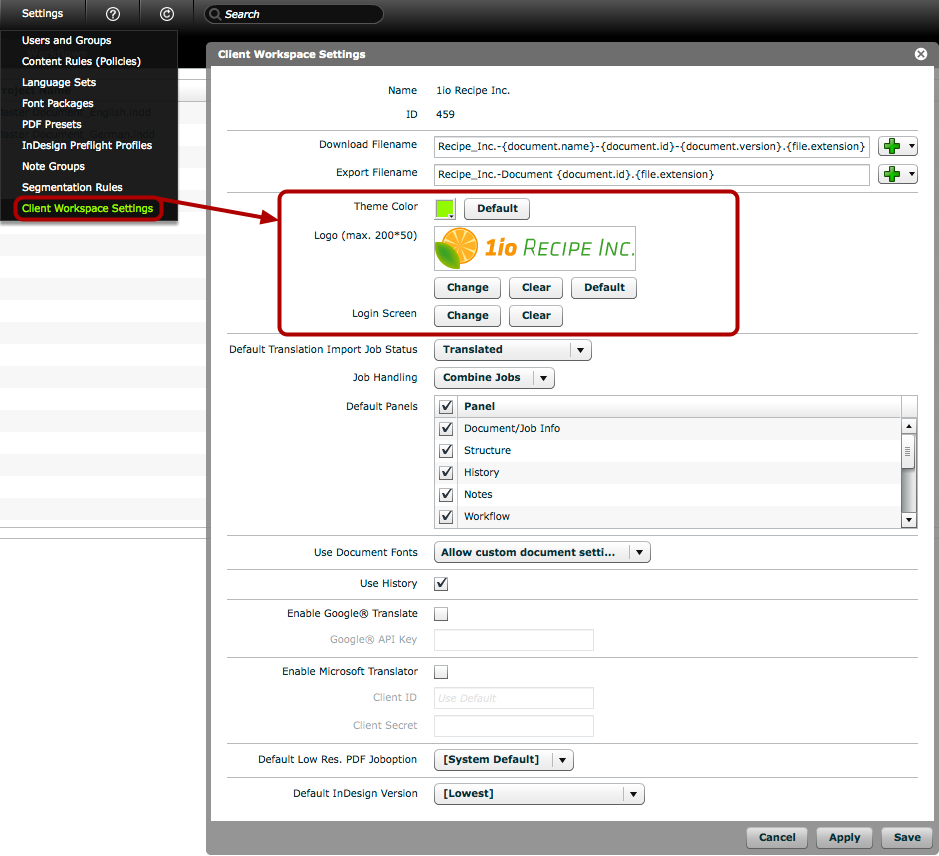

Theme Color, Logo & Login Screen

The 'Theme Color' is the color with which menus, content, etc. are highlighted within the current workspace. By default, it is the one2edit™ corporate color.

The 'Logo' is the logo that appears in the top-right corner of the UI screen. By default, it is the one2edit™ logo.

The 'Login Screen' will allow you to upload a customized login screen (in the .o2edv file format).

Theme Color

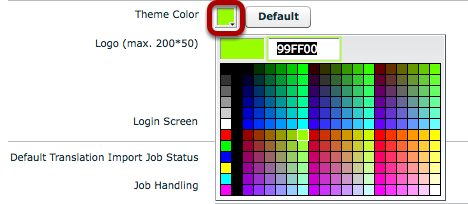

You can choose a theme color by clicking on the colored square, as shown.

A color can then be chosen directly from the palette or entered as a hexadecimal value.

If the 'Default' button is pressed, the theme color will revert to the one2edit™ green.

NOTE:
The background for all of the menus is black. If you choose a dark color, it may end up being impossible to read the menu option over which your mouse cursor is hovering.

Logo

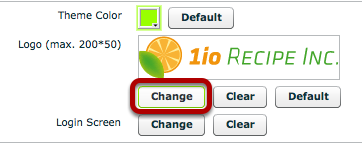

To change the logo that appears in the top-right corner of the screen, simply click the 'Change' button and choose the desired image from your hard-drive.

The image should adhere to the 200x50 pixel dimension limits shown.

• If the 'Clear' button is clicked, no logo will be shown.
• If the 'Default' button is clicked, the logo will revert to the one2edit™ logo.

NOTE:
The image needs to be in a PNG format. Transparency is supported.

NOTE:
Remember, the dark background will show through any transparencies in the image.

Login Screen

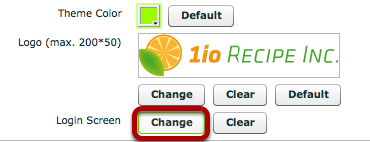

Click the 'Change' button and choose the new login-screen file to use, i.e., the .o2edv file that you created using the one2edit™ 'View Designer' software.

Click the 'Clear' button to revert to the default login screen.

NOTE:
To change the login screen for your workspace on the one2edit™ Express system, you will need to contact your one2edit account manager.

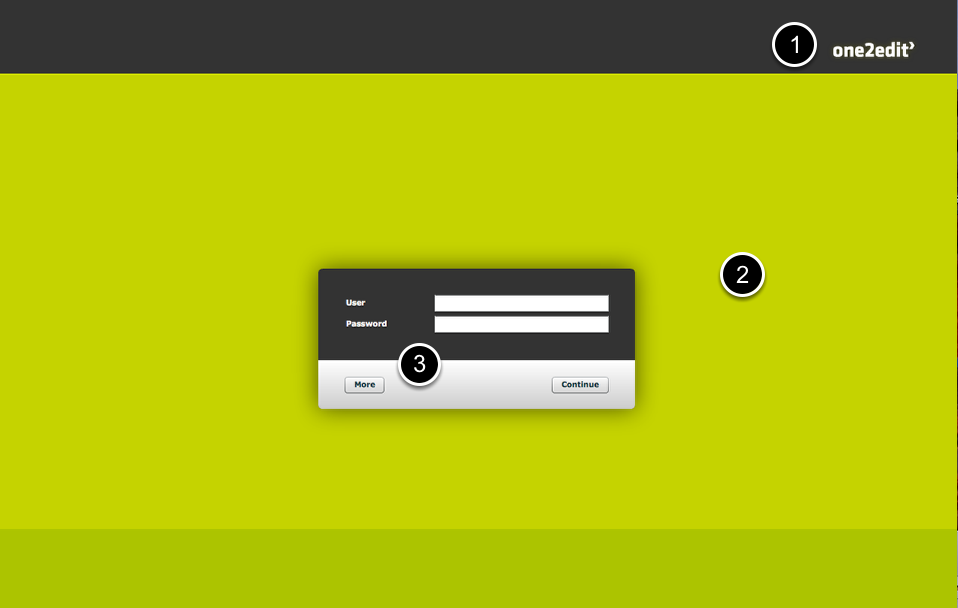

What can be changed on the login screen?

Below are the things that can be changed in a one2edit™ login screen by using the 'View Designer' software.

1. The one2edit logo can be changed to another logo. Other images/logos can also be added to the screen.
2. The background color can be changed. Gradients or single colors are possible.
3. The 'username/password' window cannot be altered. It will remain black with a grey underside.
